ATV400-G

Technical Specifications:

Performance:
Engine:	400cc -EFI Liquid-cooled
Max Power:	20 kw @6500 rpm
Rated Torque:	32 N·m @5000 rpm
Top Speed:	70 km/h
Fuel Type / Tank Capacity:	92# / 12 L
Transmission&Gear:	Automatic CVT: H-L-N-R-P
Drive Type:	4 x 4 (AWD); Switchable
Front Suspension:	Dual A-Arm
Rear Suspension:	Independent Suspension
Tyre Specification (F/R):	25×8-12 / 25×10-12
Max Load:	500Lbs (227kg)
Layout & Shipping:
Weight-G.W/N.W:	430kg / 370kg
Height to Seat:	890 mm
Min Ground Clearance:	280 mm
Wheelbase:	1365 mm
L × W × H:	2130 × 1310 × 1430 mm
Shipping Information:	27 Units / 40’HQ
Features & Accessories:
1. Equipped with an Electric Winch
2. Forged Aluminum Alloy Wheels
3. Switchable 2WD/4WD System
4. High-mounted radiator with laser-cut protective housing
5. Strobe Lights (Optional)

What we upgraded and kept:

Upgraded:

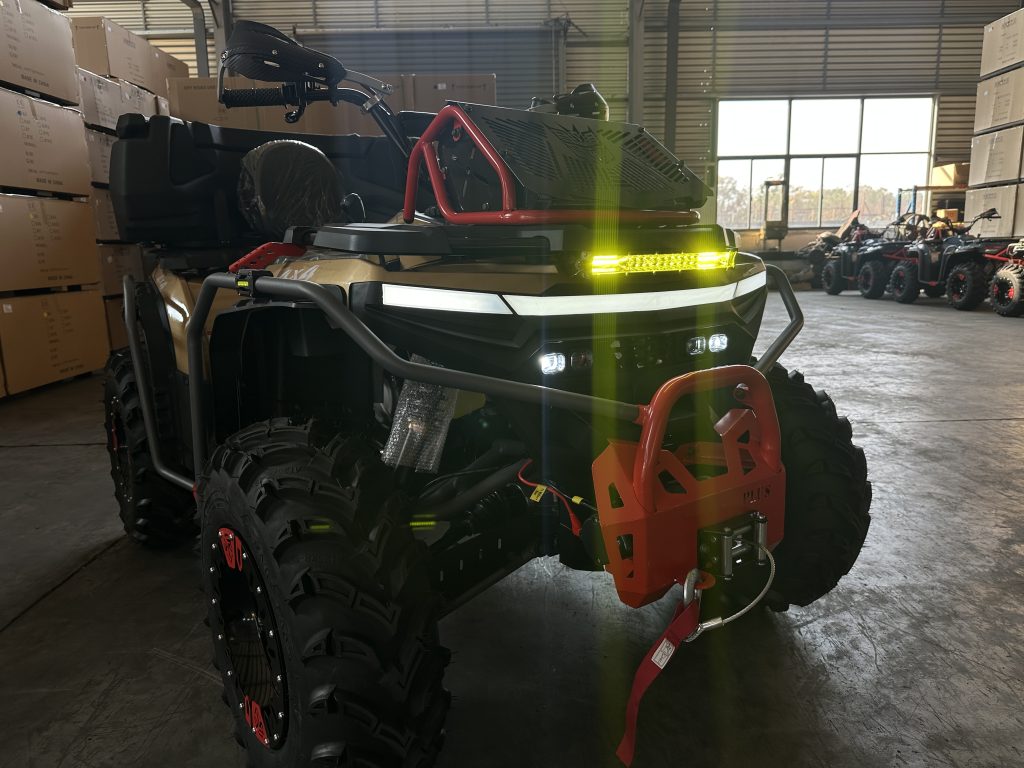

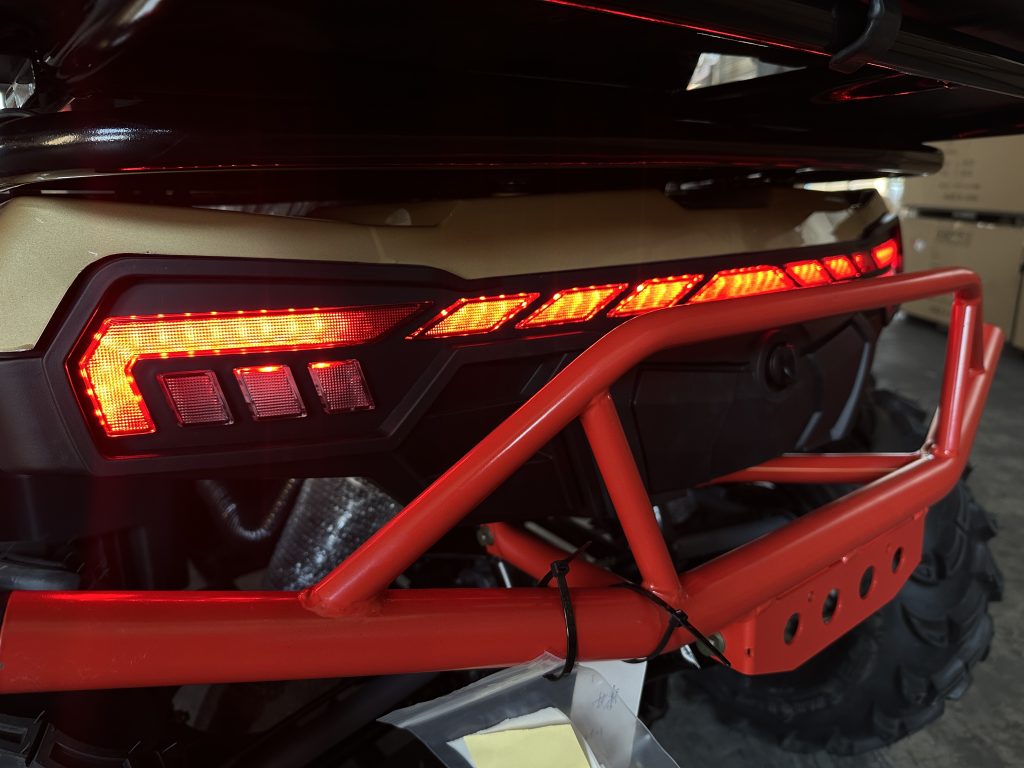

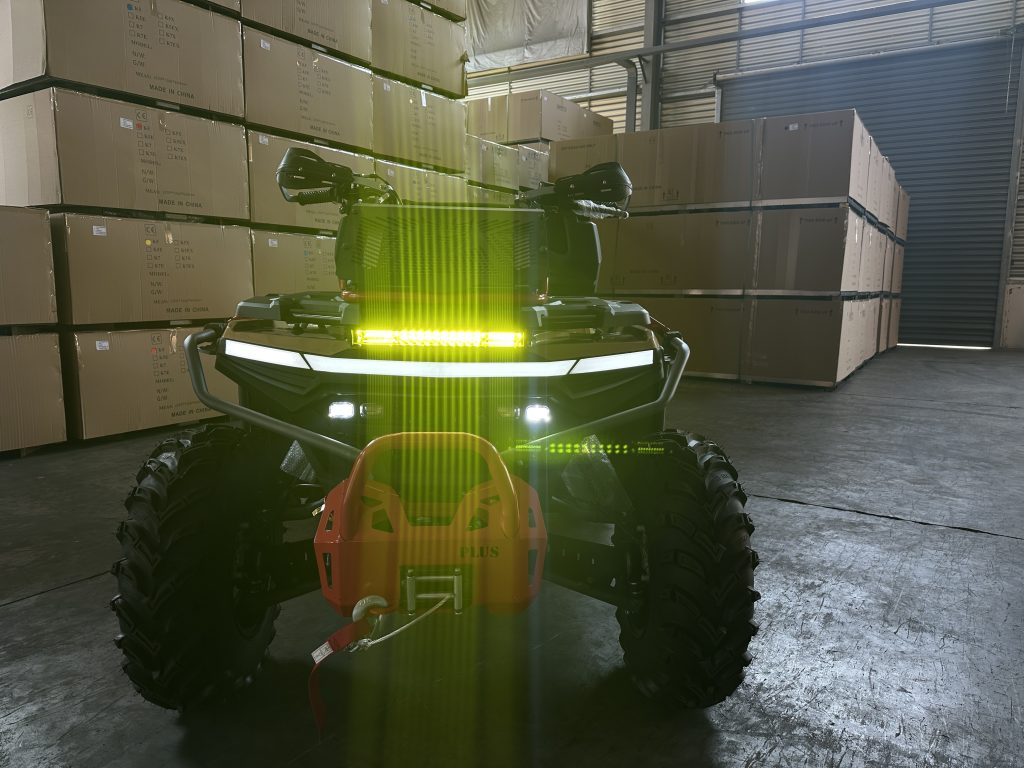

1 ☆ The front and rear headlights have been upgraded to full-width LED lights with improved water resistance. They also come with fog lights. Unique and modern design, with a stronger sense of technology.

2 ☆ The front bumper and winch feature an integrated design, offering higher strength and a cleaner overall structure.

3 ☆ A rear cargo box now comes as standard. The rear seats retain both the backrest and the grab handles.

Kept:

1 ☆ A powerful 4WD system. It has been a long-term bestseller in Russia and has proven itself in snow and muddy conditions. One-button switch between 2WD and 4WD.

2 ☆ Two-speed selectable transmission.

3 ☆ The best 400cc engine in China, delivering strong power. You can compare it directly with any ATV of the same displacement.

4 ☆ A high-mounted radiator with an elevated protective guard.

5 ☆ Side protective bars running across the body — a rare configuration among competitors.
